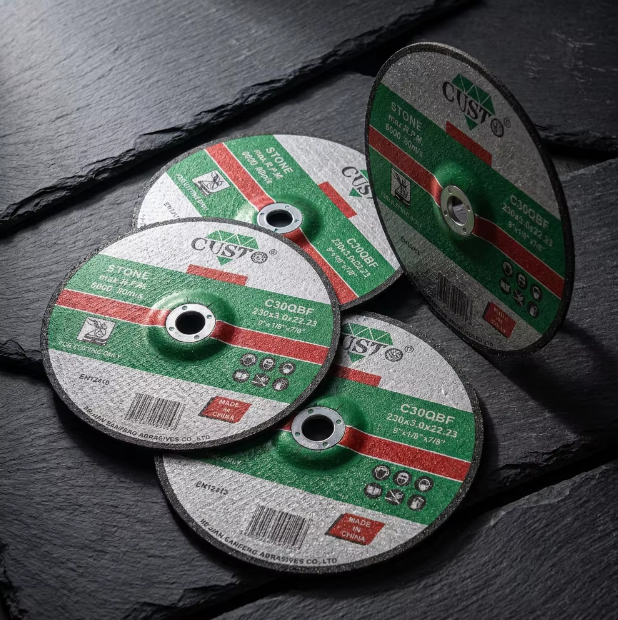

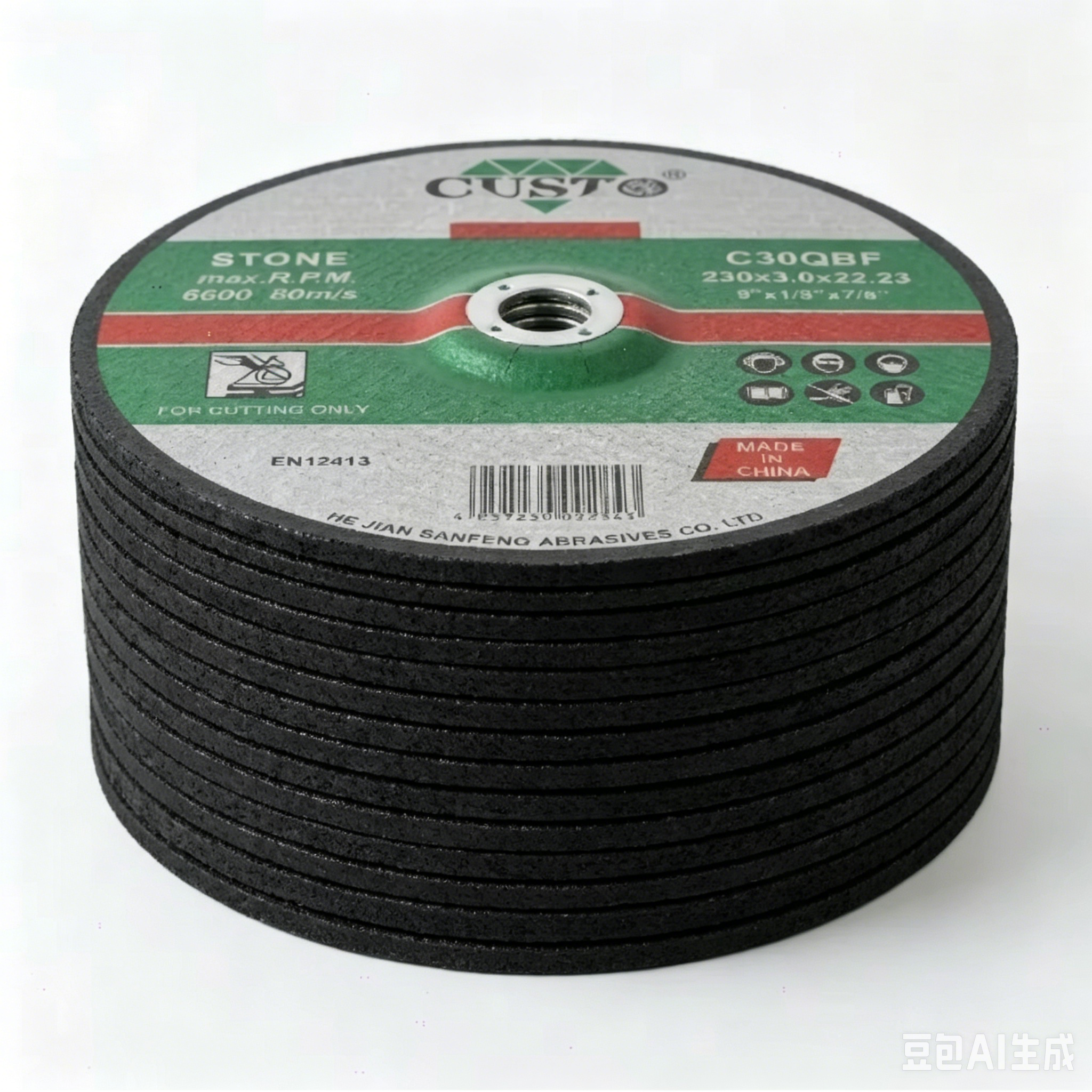

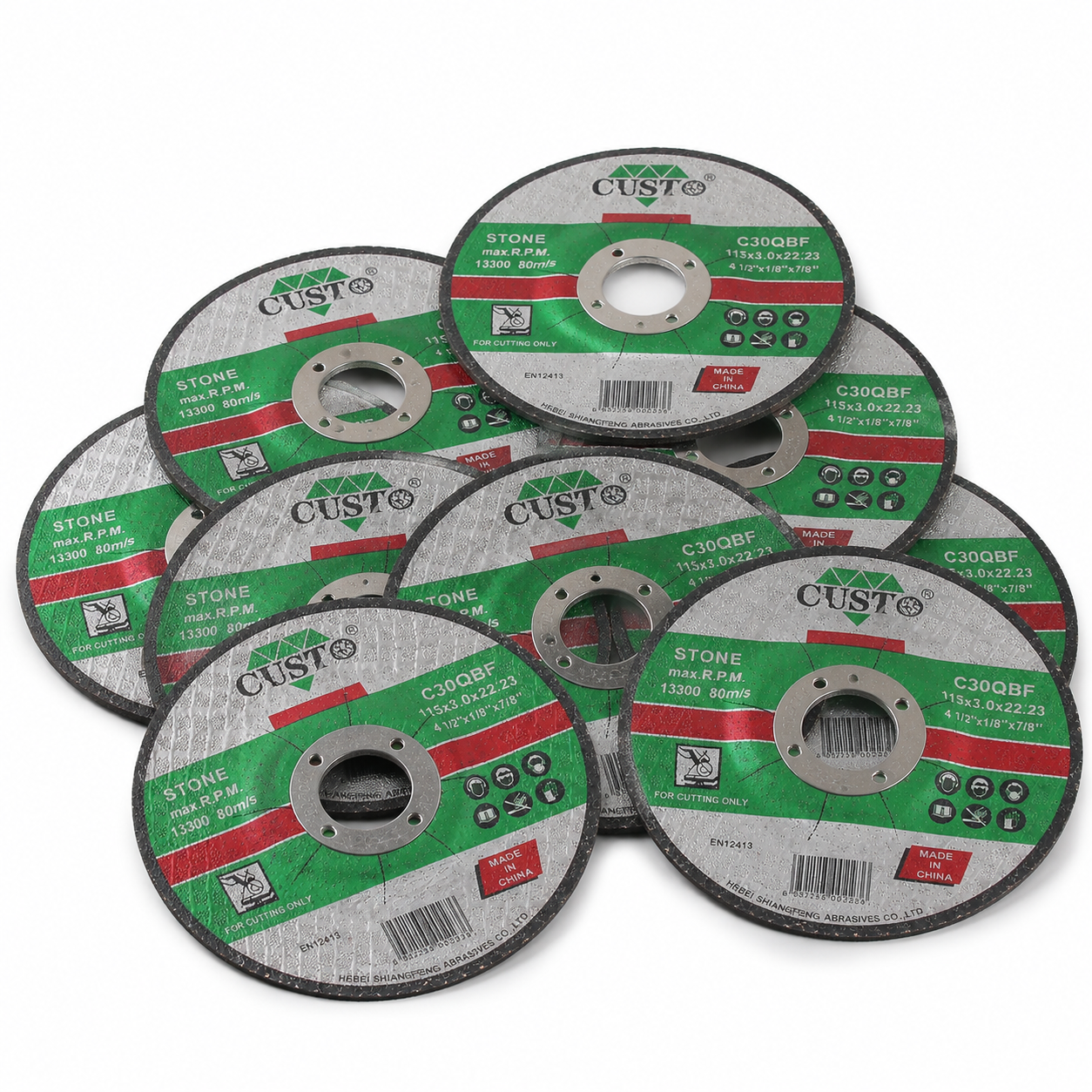

Substitute products of diamond cutting wheels for concrete. Used for cutting various stone materials, No pollution and damage on work-piece surface after cutting.
Substitute products of diamond cutting wheels for concrete. Used for cutting various stone materials, No pollution and damage on work-piece surface after cutting.
Feed pressure is increased to avoid potential safety hazard caused by fracture when cutting.
Maximize the friction to improve sharpness, More cost saving than cutting by alloy blade
Cutting wheels of thickness of 1.6mm are widely used with tiny dust when cutting.
Smooth and flexible handle for cutting steel with various steel shapes
Fine Durability
Tiy Dust
Glossy cutting surface
No Clogging
Economic
Cutting Floor
Solid Material
Natural stone
Concrete products/seamless floor
Marble
Bricks
Ground
Tile
Bronze, Brass
Non-ferrous metal
Item number | Dimension | Dimension | Speed(RPM) | Speed(m/s) | QTY/BOX | QTY/CTN |
42C1150822N2B | 115×0.8×22.2 | 41/2×1/32×7/8 | 13300 | 80 | 100 | 400 |
42C1151022N2B | 115×1.0×22.2 | 41/2×1/25×7/8 | 13300 | 80 | 100 | 400 |
42C1151222N2B | 115×1.2×22.2 | 41/2×3/64×7/8 | 13300 | 80 | 100 | 400 |
42C1151622N2B | 115×1.6×22.2 | 4 1/2×1/16×7/8 | 13300 | 80 | 100 | 400 |
42C1152022N2B | 115×2.0×22.2 | 4 1/2×5/64×7/8 | 13300 | 80 | 100 | 400 |
42C1152522N2B | 115×2.5×22.2 | 4 1/2×3/32×7/8 | 13300 | 80 | 25 | 400 |

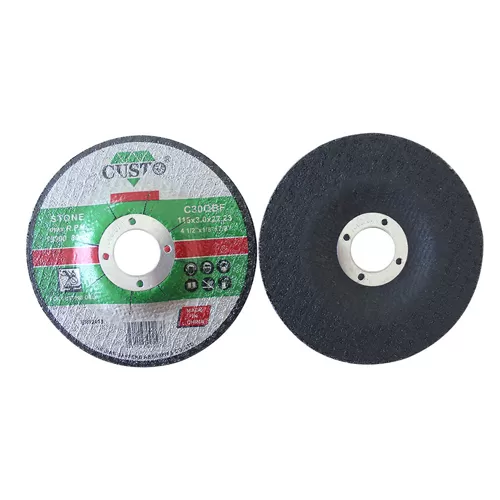

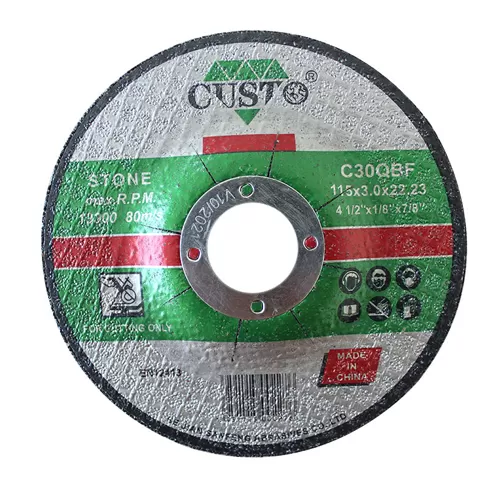

42C1153022N2B | 115×3.0×22.2 | 4 1/2×1/8×7/8 | 13300 | 80 | 25 | 200 |
42C1250822N2B | 125×0.8×22.2 | 5×1/32×7/8 | 12250 | 80 | 100 | 400 |
42C1251022N2B | 125×1.0×22.2 | 5×1/25×7/8 | 12250 | 80 | 100 | 400 |
42C1251222N2B | 125×1.2×22.2 | 5×3/64×7/8 | 12250 | 80 | 100 | 400 |
42C1251622N2B | 125×1.6×22.2 | 5×1/16×7/8 | 12250 | 80 | 100 | 400 |
42C1252022N2B | 125×2.0×22.2 | 5×1/64×7/8 | 12200 | 80 | 100 | 400 |
42C1252522N2B | 125×2.5×22.2 | 5×3/32×7/8 | 12200 | 80 | 25 | 400 |

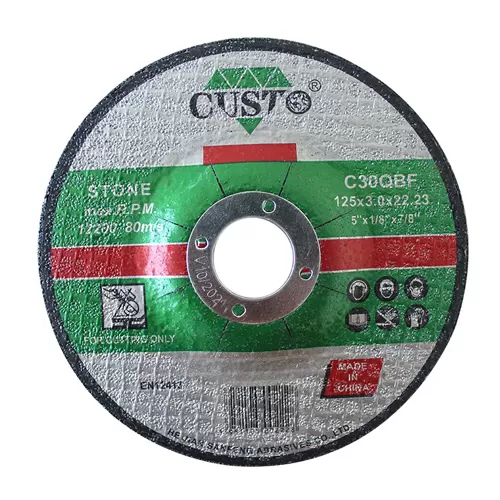

42C1253022N2B | 125×3.0×22.2 | 5×1/8×7/8 | 12200 | 80 | 25 | 200 |
42C1501622N2B | 150×1.6×22.2 | 6×1/16×7/8 | 10200 | 80 | 50 | 200 |
42C1502022N2B | 150×2.0×22.2 | 6×5/64×7/8 | 10200 | 80 | 50 | 400 |
42C1502522N2B | 150×2.5×22.2 | 6×3/32×7/8 | 10200 | 80 | 25 | 200 |

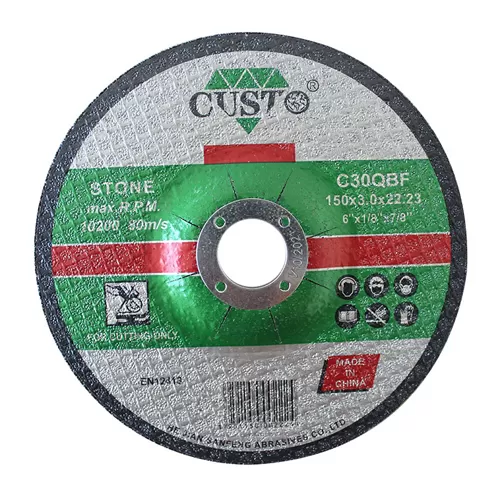

42C1503022N2B | 150×3.0×22.2 | 6×1/8×7/8 | 10200 | 80 | 25 | 200 |
42C1801622N2B | 180×1.6×22.2 | 7×1/16×7/8 | 8600 | 80 | 50 | 200 |
42C1802022N2B | 180×2.0×22.2 | 7×1/12×7/8 | 8600 | 80 | 50 | 200 |
42C1802522N2B | 180×2.5×22.2 | 7×3/32×7/8 | 8600 | 80 | 25 | 100 |

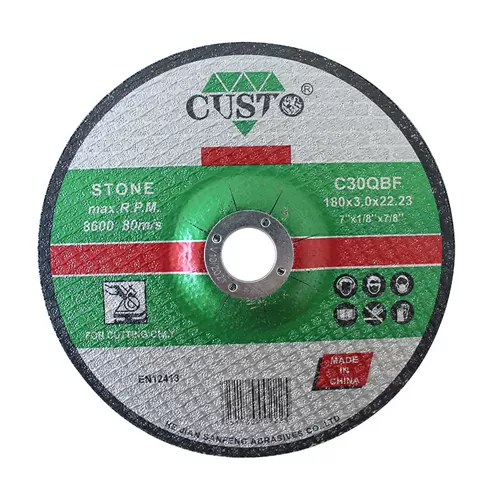

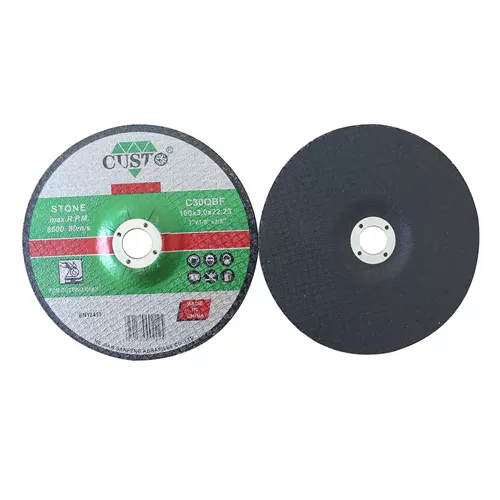

42C1803022N2B | 180×3.0×22.2 | 7×1/8×7/8 | 8600 | 80 | 25 | 100 |
42C2301622N2B | 230×1.6×22.2 | 9×1/16×7/8 | 6600 | 80 | 50 | 100 |
42C2301822N2B | 230×1.8×22.2 | 9×1/14×7/8 | 6600 | 80 | 50 | 100 |
42C2302022N2B | 230×2.0×22.2 | 9×5/64×7/8 | 6600 | 80 | 50 | 100 |
42C2302522N2B | 230×2.5×22.2 | 9×3/32×7/8 | 6600 | 80 | 25 | 50 |

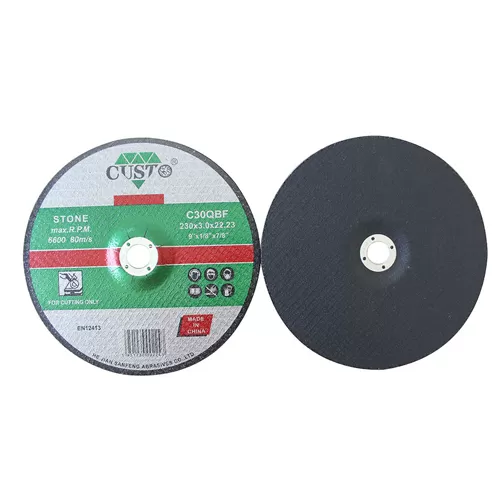

42C2303022N2B | 230×3.0×22.2 | 9×1/8×7/8 | 6600 | 80 | 25 | 50 |
